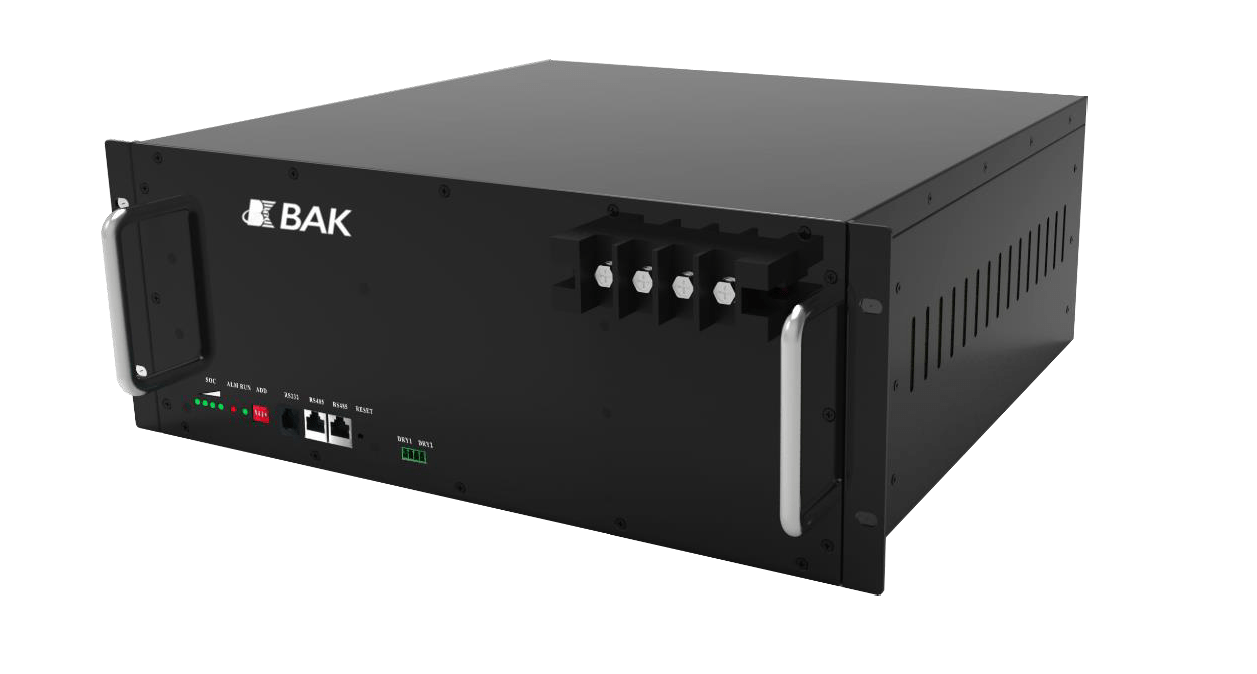

BAK: Battery Lithium Ion 2.5Kwh 25.6V 100Ah (BTESF24V100-R)

Description

Description

General Data
• Normal Voltage: 25.6V
• Rated Capacity: 100Ah
• Total Energy: 2560Wh
• Recharge Voltage: 27.6V
• Maximum Recharge Current: 20A ( Parallel: 10A )
• Maximum Discharge Current: 50A
• EOD Voltage: 22V
• Peak Discharge Power: 3360 W 3S
• Parallel or Series: Support Parallel
• Cycle Life: ≥4000 Cycles @ <0.5°C 80% DOD 25°C
• Protection Class: IP20
• Humidity: 0 to 95 % RH Non-Condensing
• Cell: Lithium Iron Phosphate prismatic cells with high safety and reliability
• Certifications: IEC62133, U, and UN38.3
• Installation: Rack / Cabinet Mount 19″ or 21″

Working Temperature Range
• Recharge: 0°C to +60°C
• Discharge: -20°C to +60°C

Protection
• Over voltage protection (Cell & System)
• Low voltage protection (Cell & System)
• High temperature protection
• Low temperature protection
• Short circuit protection
• Over current protection
